Oval Coiling Arm

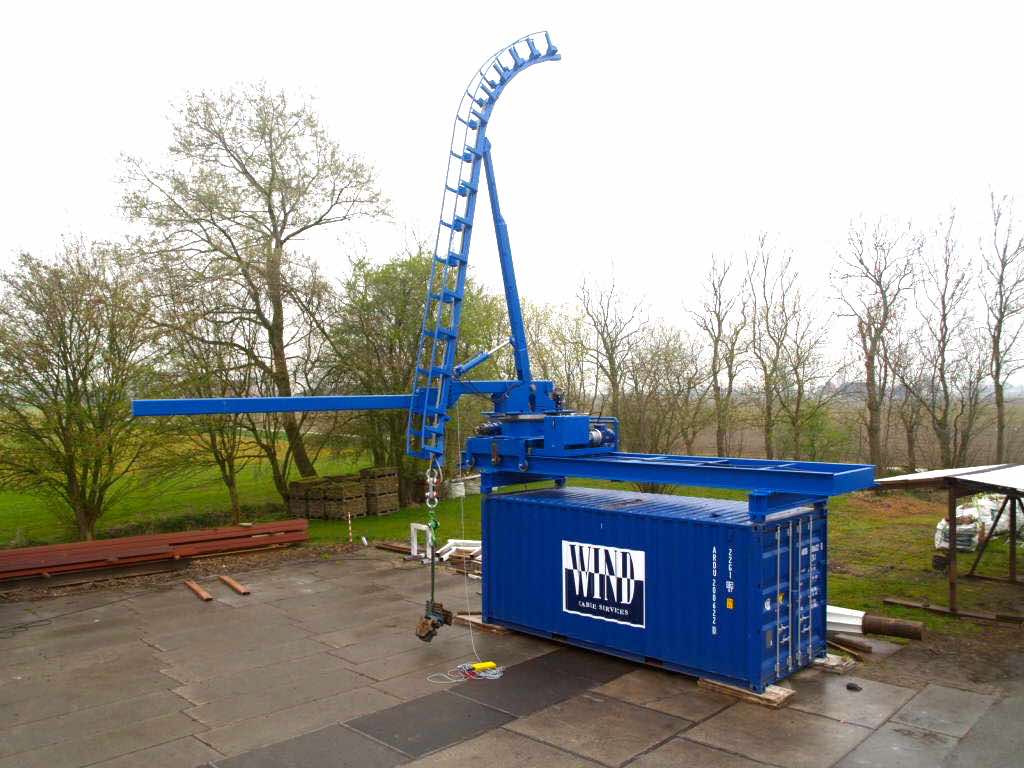

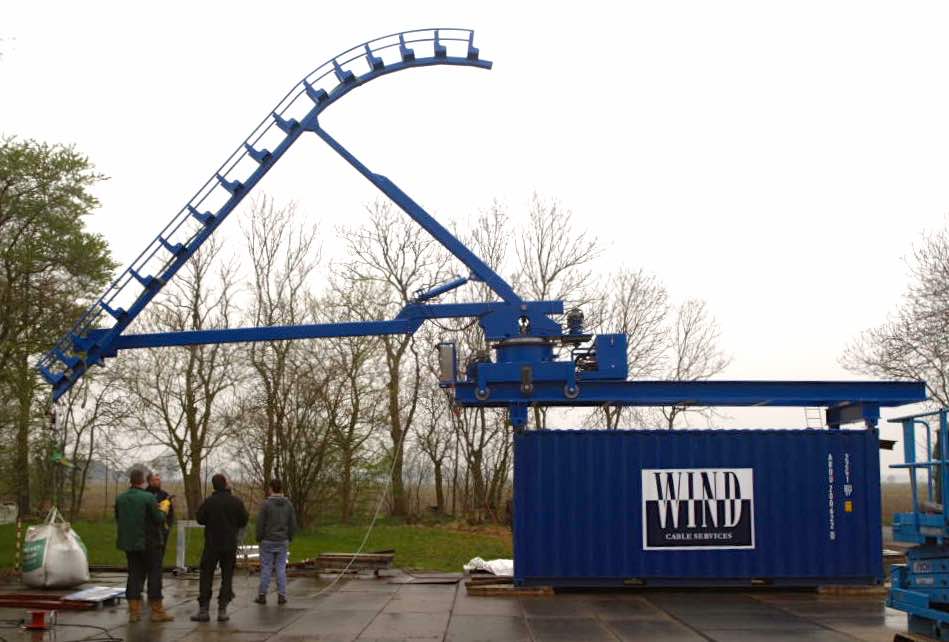

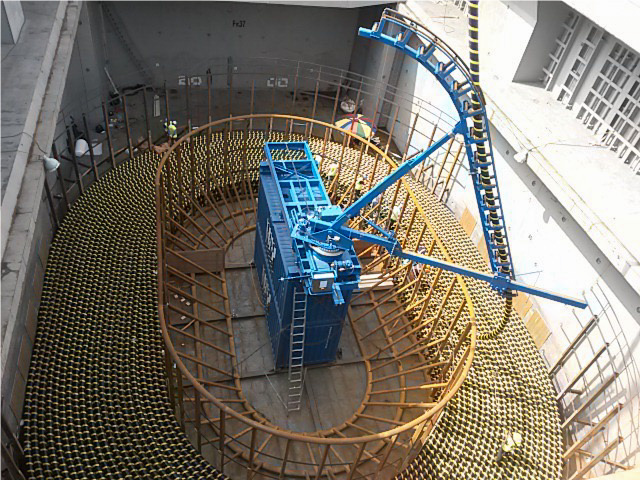

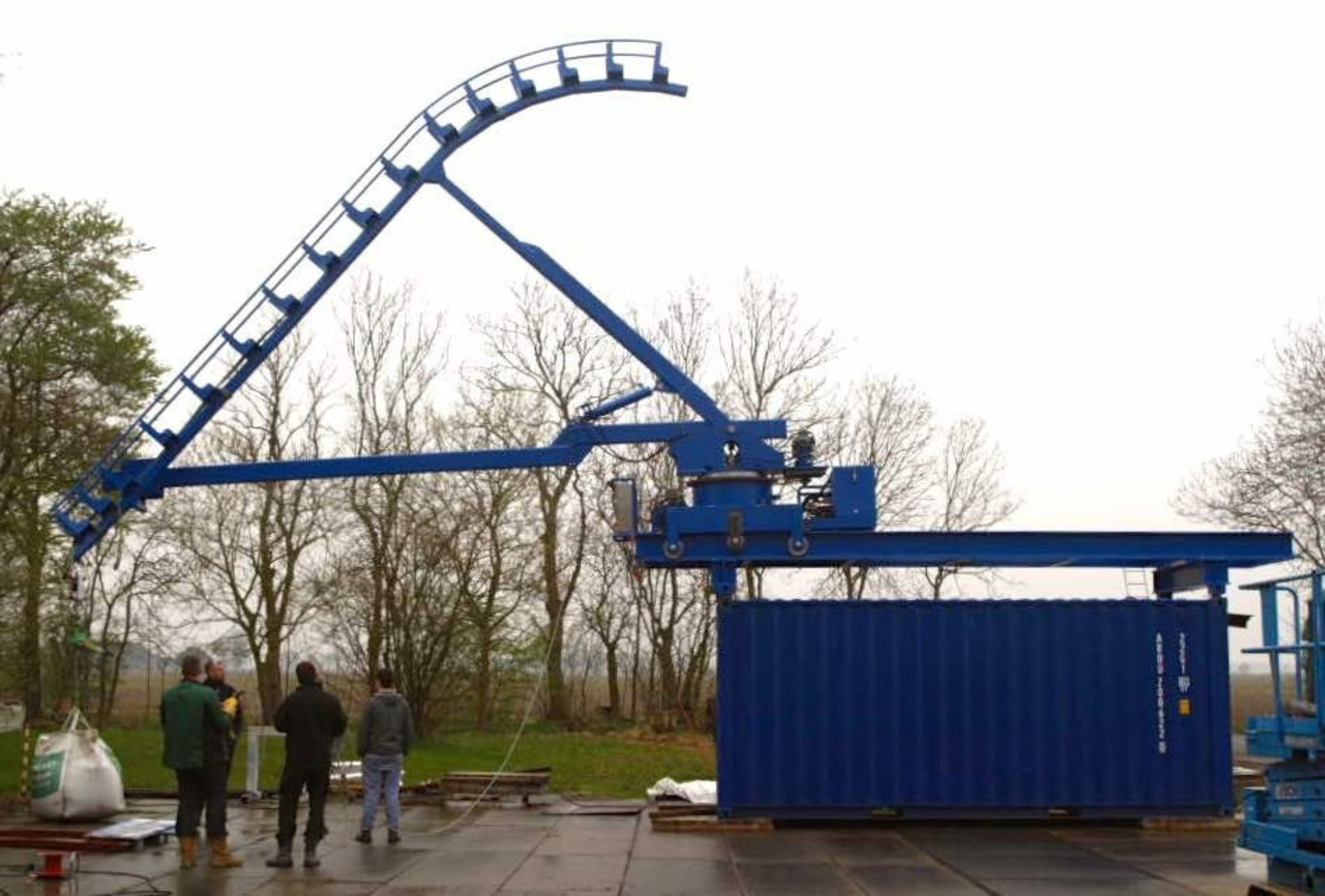

The Oval Coiling Arm (OCA) is designed to guide cable smoothly and efficiently into an oval basket.

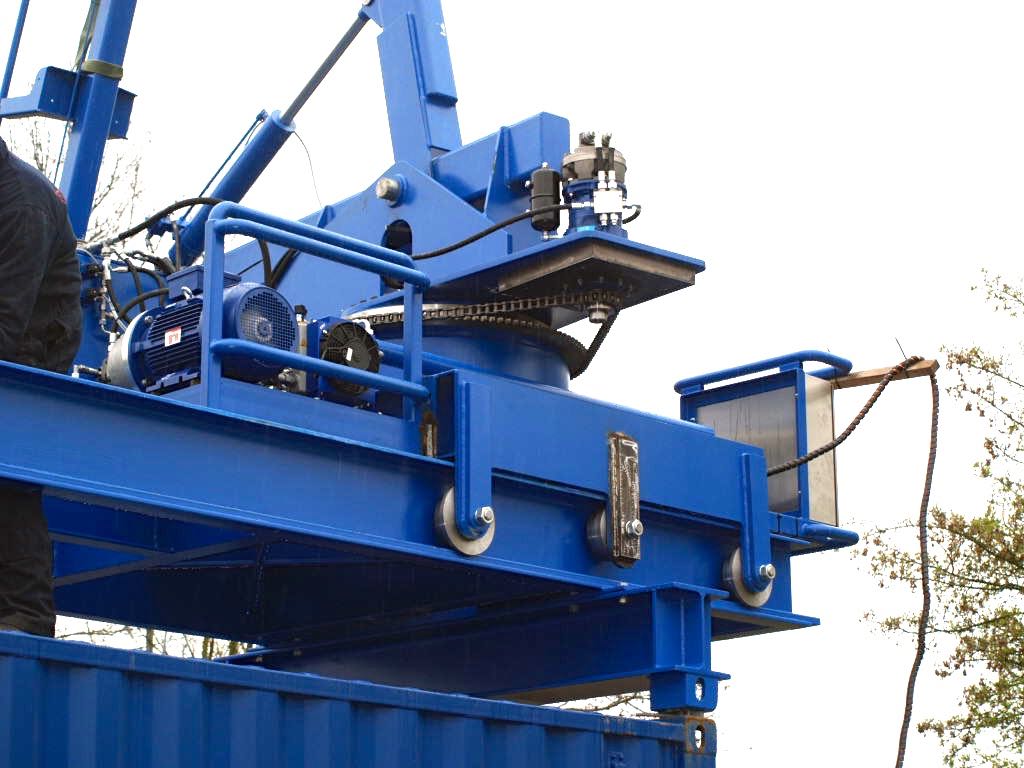

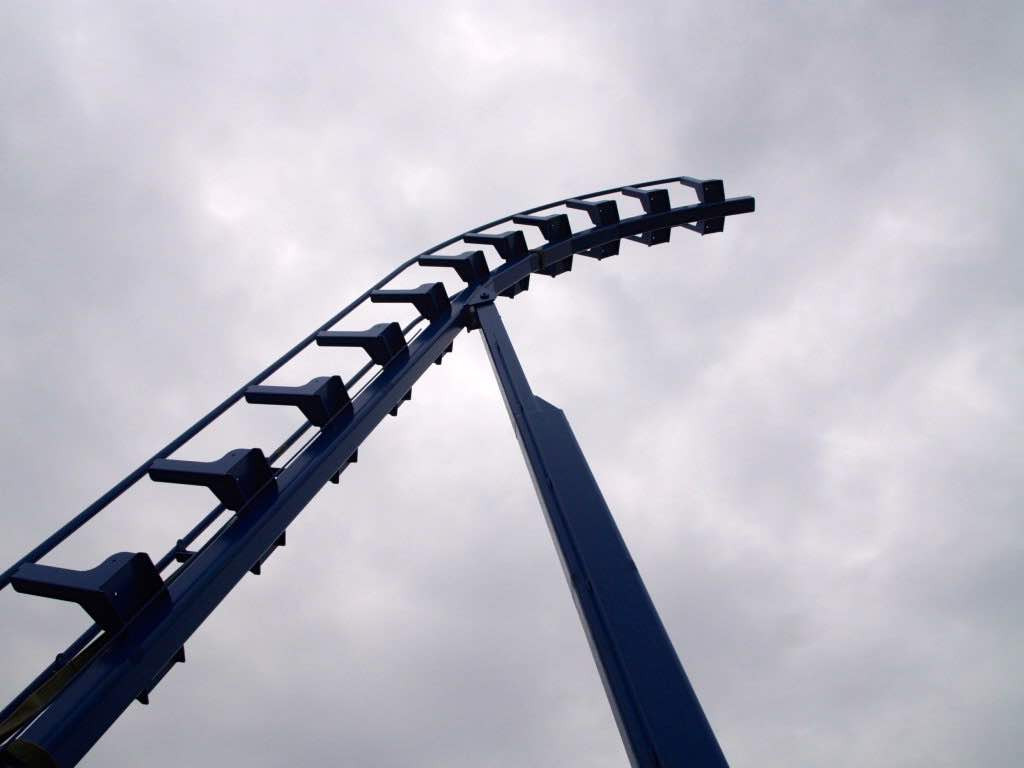

The flexible arm is mounted on a specially designed rail system, which is securely installed onto a container to provide stable and controlled cable handling during operation.
Specifications
Footprint
20ft. ISO container. Height 7.1m
Weight on deck
6.5t (approx. value) excl. containers
Working Load Limit
500kg cable weight
Power supply
380V, 50Hz, 11kW
Max. pulling force
20kN
Cable opening
Min. 30mm / max. 300mm
