Storage equipment
Modular Cable System 1000T

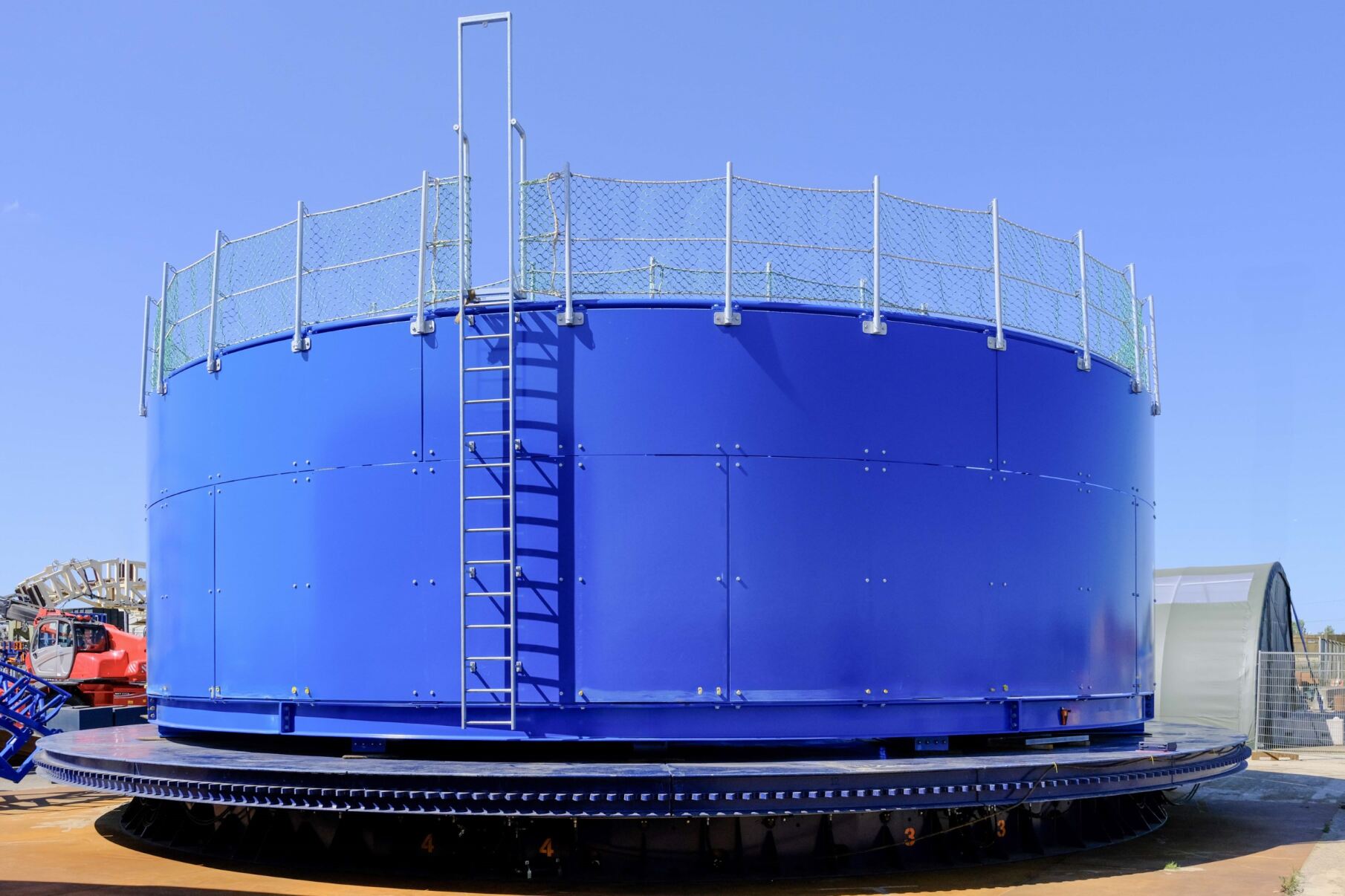

Compact basket carousel designed for use in the offshore wind and oil & gas industries.

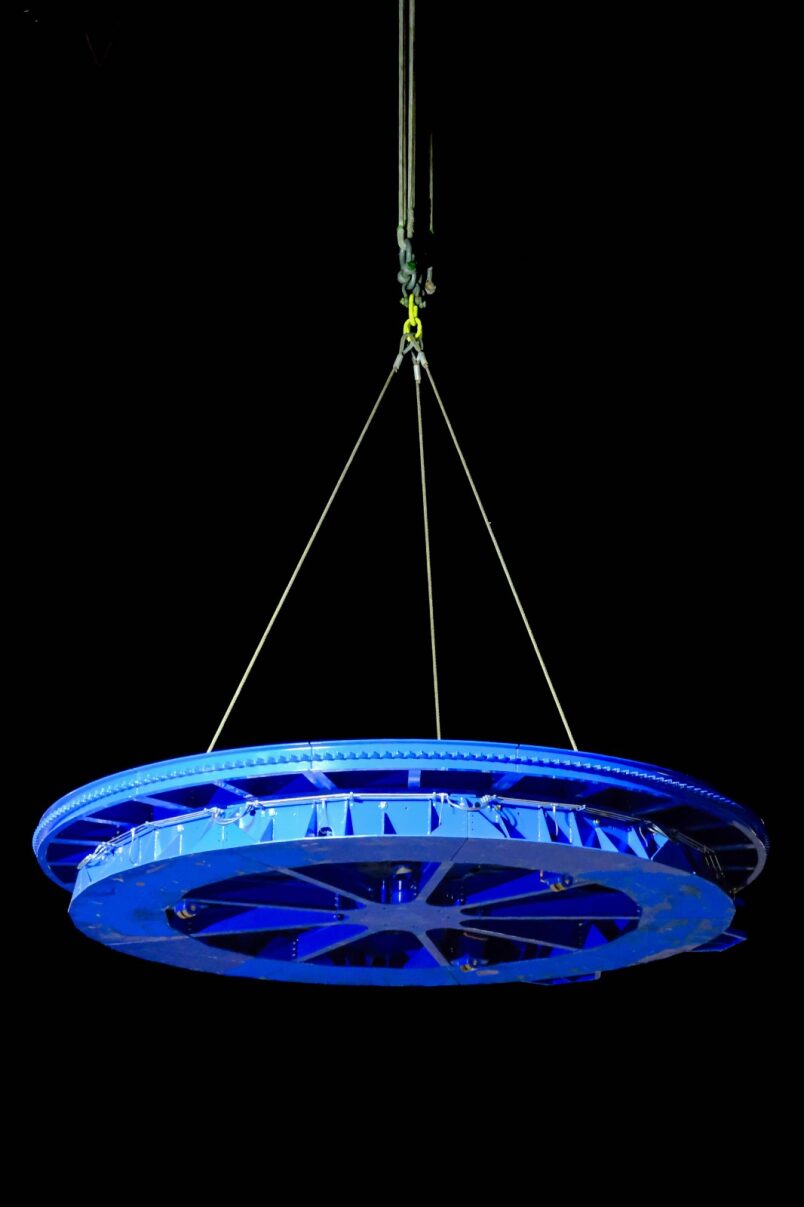

Mobilized in two lifts – the first lift includes the base grillage and drive frames, the second lift includes the cable basket.
The Low Profile Circular Grillage maximizes deck space efficiency, making it ideal for smaller offshore wind installation vessels.
Specs
Technical details
Dimensions
OD 14000mm x 920mm
Weight
Approx. 90Te (without basket)
Drive
4 x 20kW Hydraulic Motors equipped with failsafe brakes
Speed
1000m/hr maximum lay rate at innercore
HPU
75kW
Required Supply
400V, 50Hz / 440V, 60Hz, 125A
On request
Available 2 times HPU 75kW for redundand(cy)
Load spreading
54 hydraulic liftable wheels, when not used parked on parkingblocks
