Support equipment

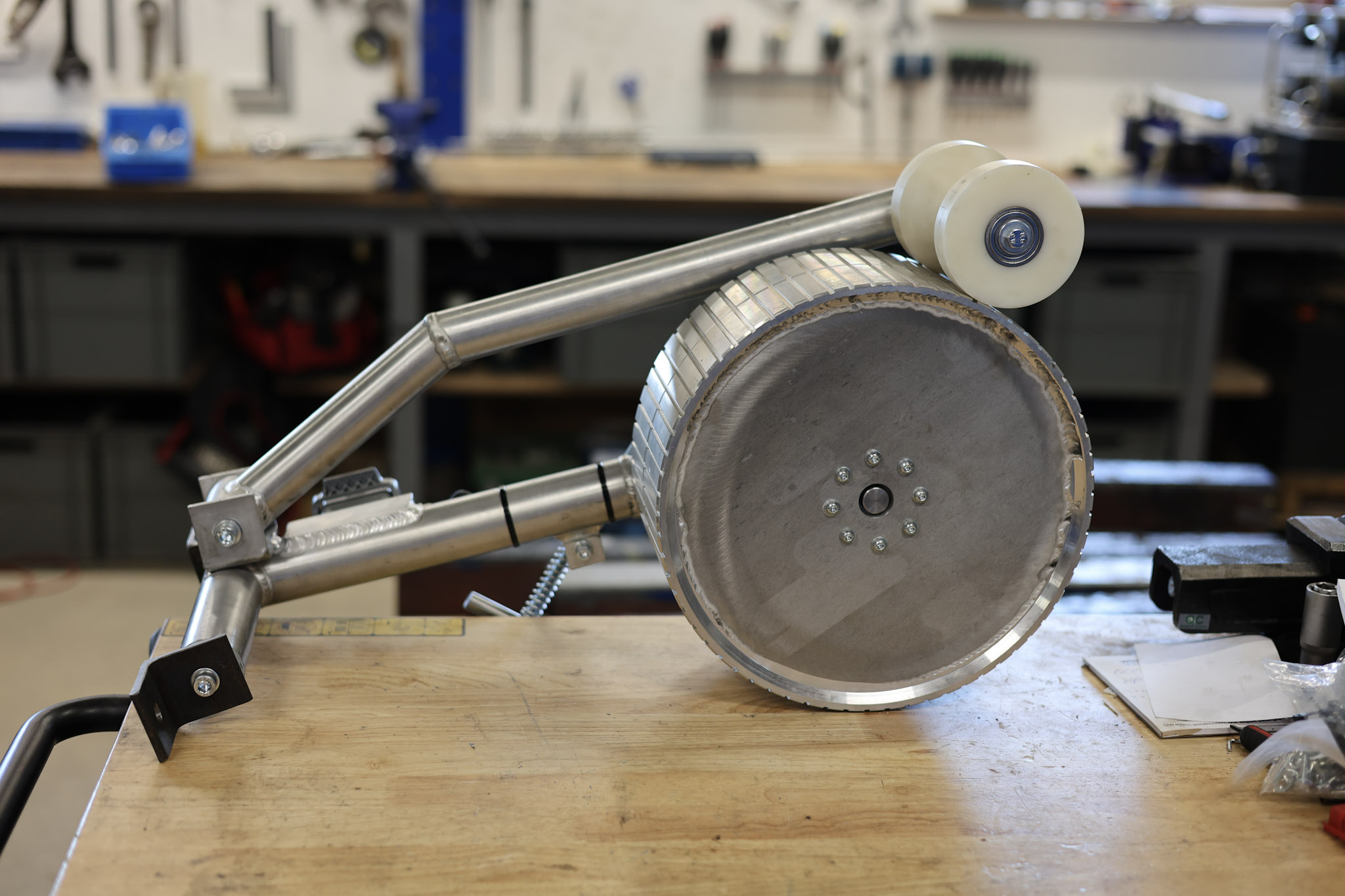

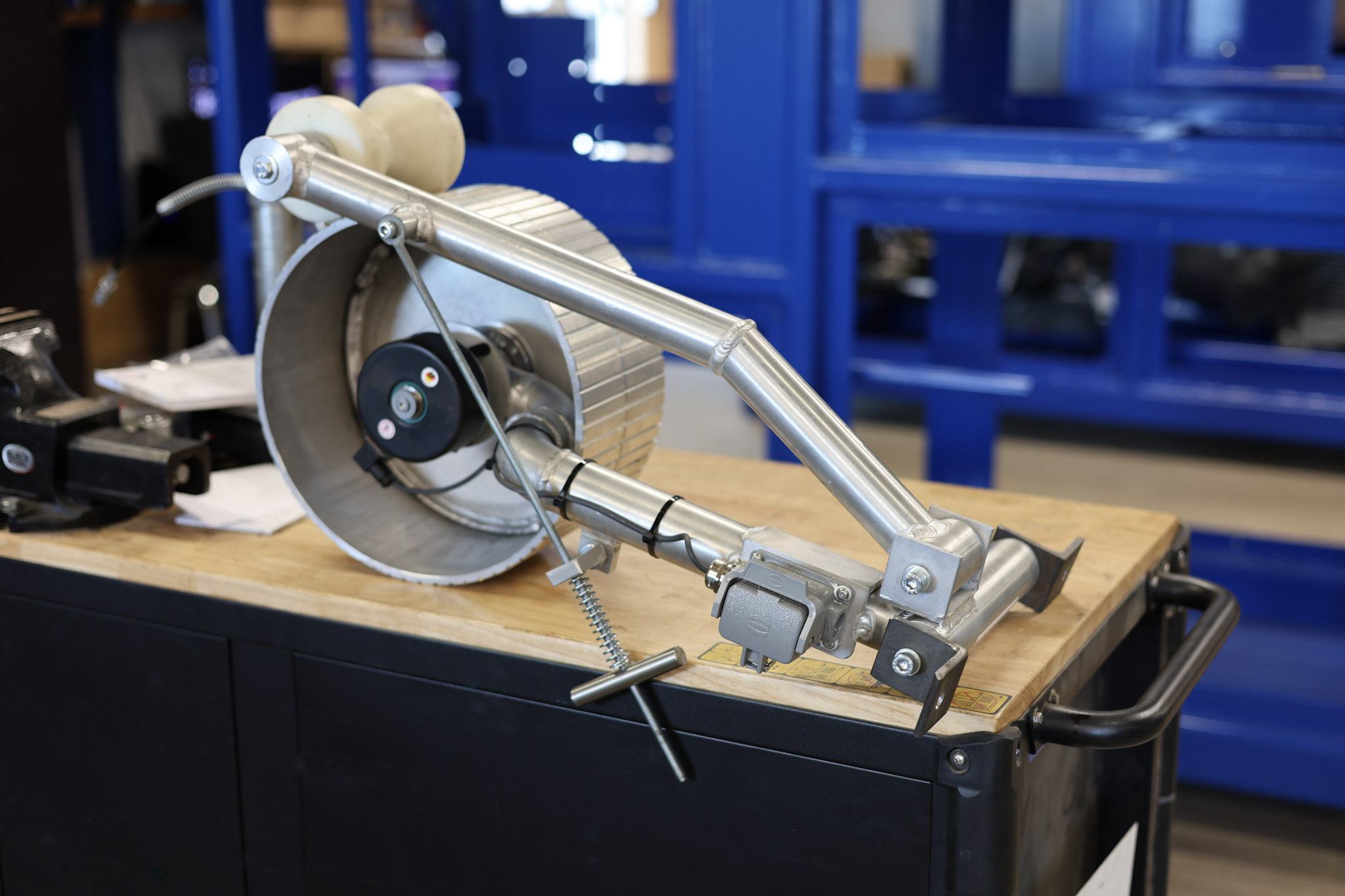

Digital Cable Counter
In addition, HICE offers Digital Cable Counters for accurate measurement of cable length and speed. The systems are equipped with a PLC and serial communication port, allowing measured data to be collected, monitored and integrated into project operations.
HICE can tailor these systems to specific client requirements, supporting the safe and efficient execution of cable projects.
Specifications
Overall dimensions
Length 0.68m / Width 0.25m / Height 0.35m
Weight
Appr. 10kg
Power Supply
100V AC … 240V AC 50-60Hz
Cable opening
Min. 25mm

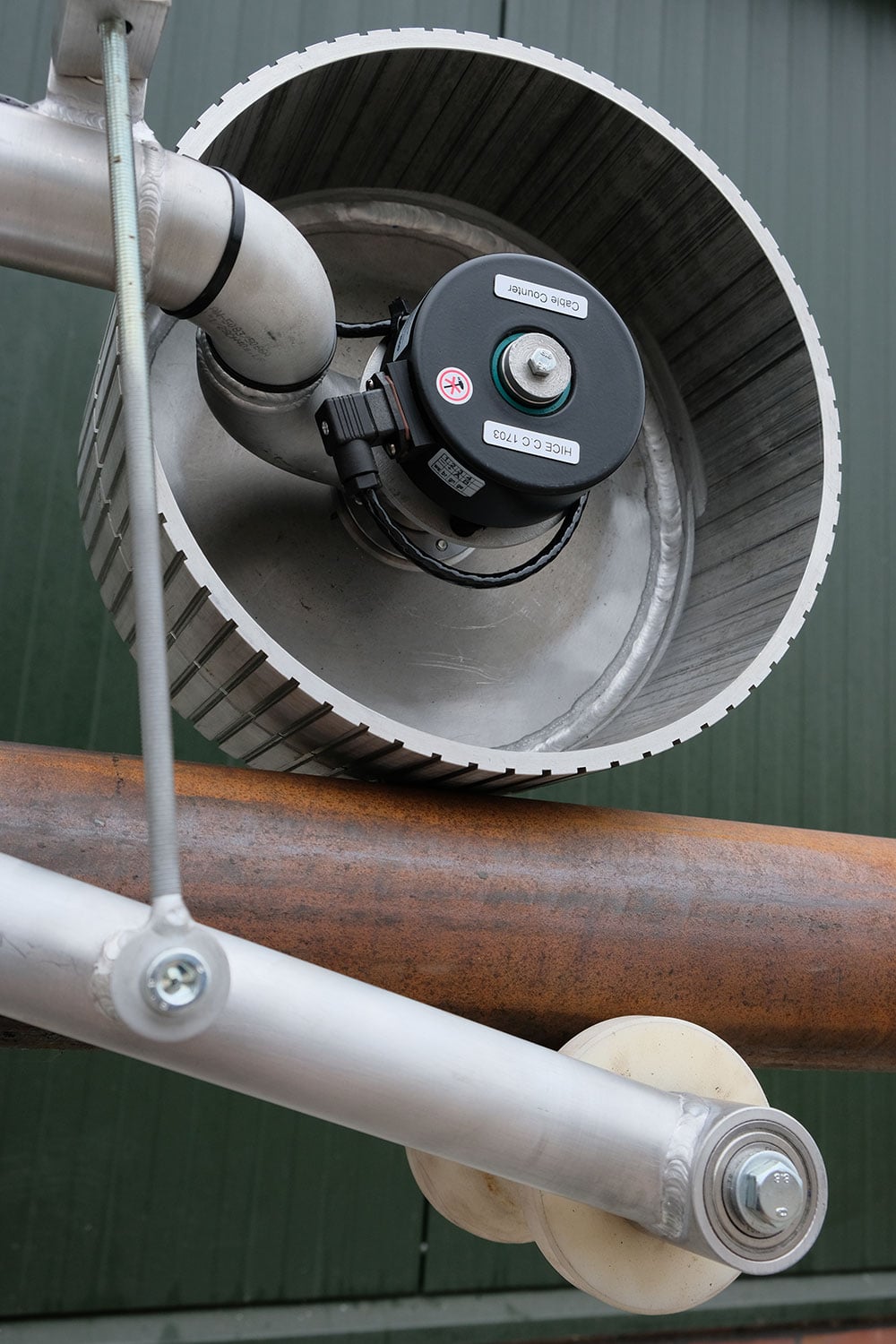

Encoder
1x digital encoder HWI104S- 2021R073-2000pulses/rev (2000pulses/rev)

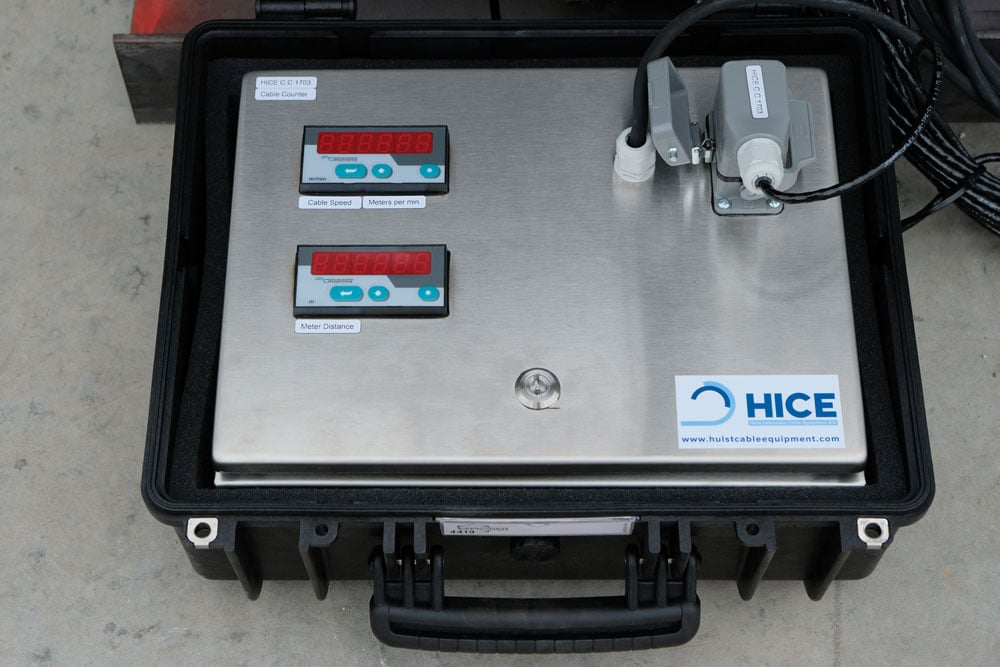

Display
7.0 inch widescreen Touch display
Communications
RJ45 CONNECTOR/ USB connector for USB Flash drive (max 32gig)
Communication protocols
OPC UA Connection/ Modbus Connection/ Put-Get connection (Siemens protocol)
